DAK lace module 1, template use, other software

Working with lace designs: lace poses interesting challenges in machine knitting. The name is associated with a variety of fabrics, but transfer lace is the specific topic for the moment.
Reminders with respect to transfer lace knitting:
in Studio simple lace the transfers and knitting occur for each row of the design  with each pass of the carriage
transfer lace patterns in Studio km begin with 2 blank rows, end with markings for transfers
Brother transfer lace begins with needle selection markings for transfers, ends with two blank rows. The knit carriage does not advance patterning rows unless the change knob is used to select needles as well.
Hand knitting charts typically illustrate the knit side, while in machine knitting the knitter is working looking at the purl side, so if charting for duplicating the same transfers, the HK pattern requires mirroring
The Brother lace carriages usually operate from the left, Toyota from the right
Some download programs automatically flip patterns horizontally, great if you are working with texts in most cases, but a consideration if you wish to control the direction of other stitch type formations, and lace patterns drawn in the program may need to be flipped as well in order to knit properly on Brother with the lace carriage operating from the left side
When I design, out of habit, I try if possible to work with repeats suitable for punchcard machines as well.

Facebook members who participate in machine knitting forums have access to the information generously shared by members. Sheila West published a video on drawing lace repeats on a DAK knit stitch symbols ground as opposed to the more traditional charting using lace symbols on a blank design grid, and there is also an associated downloadable PDF.

Softbyte support has been responsive and at times helpful in communicating with me, reviewing issues I encountered.

I prefer to download manuals for software when the option is available making it possible to review them when not running the program. In my enthusiasm to do so, it appears I downloaded the manual version offered in the last tab, which happens to be for section 5, graphic design studio, which by default was not helpful in using the lace module. When I initially looked for help, the information that became available was for the wrong module, 5. In using the program on Oct 21 I have not been able to replicate that issue when opening other modules.
When the program is first installed, the manuals are listed in a series of tabs, ending with that for section 5. For Stitch Designer, choose section 3, the manual appears and a way to download the associated PDF is also provided.  There are 5 help files and 5 manual files. They don’t interact at all and work completely independently from each other, can be opened from DesignaKnit or from a file browser window.
Interactive choices using the help menu: Contents  Manual: When manuals are chosen in any module, there is an option offered to download the associated pdf by clicking on the arrow key specific page numbers based on the index may be entered and jumped to.
Tutorials: Update: The lace module is an extremely attractive solution for speeding up the lace design process whether from published charts or DIY. The left mouse button is used to draw as usual, but the right mouse button is used when drawing shared transfers in fine lace on Brother, or simple lace in Studio km.
My initial experiment and observations:
each time the program opens a new session, the normal drawing pattern appears. Selecting the Lace tool icon in the left menu bar will change the default palette to include the necessary symbols. In working with stitch symbols this is the range of available, It is possible to show any repeat tiled as well. For lace the number of stitches and rows should be close to those required by the design, its overall size may be trimmed if needed when the design is completed.
The left mouse is used to apply the symbols, I have read the right mouse has a different function and is used to draw shared stitches in Brother fine lace or in filling in simple lace designs for Studio machine models.
To select the lace mode simply click on the small icon on the left menu bar, a grey border on its left and the upper edge will indicate it is active, the palette and cursor will change. The designer may enter patterns on this view as well, but I prefer to work with symbols
It is best to begin testing with a small repeat when exploring new techniques, find his format easier to use than drawing on “stitches”. There are several options for the canvas ground color, the default is in blue. As a first step, saved as an stp, Dak opened my saved file as pictured in this view.  Wrong approach: The pencil tool must be active to continue to draw, left mouse click to place symbol, right mouse click to erase, clicking on any symbol in any one row will call up pertinent information on its location in the repeat
Is there another way to draw symbols while working on a lace design file?  use the lace tool, using the pencil tool with each type of lace symbol is not recommendedDAK row numbers do not refer to design rows, they reference row counts as would be seen in any row counter registering carriage passes
Other views for the repeat: as yarn colors and as stitch symbol palette If a symbol is missing from the drawing, the program alerts the knitter to the error.  Here there are no eyelets represented.  There was no warning for the error in the last row of the test stp, where in the last row two stitches were being moved in opposite directions on the same row. If the content is considered accurate, this window will appear, the safe button will be highlighted, click OK I found this lack of warning for some errors in later designs as well, it is a topic under review by the developer. When choosing machine knitting options lace is not offered as one,  fair isle is used To print a template for use on another machine the stp file may not be used for copying to clipboard and converting to stitches in another program. In the print menu, saves are possible for templates akin to graph paper references for working further on both electronic and punchcard machines. For the electronic printout, the choice of the machine appears to need to be set to 950i wrong side facing is chosen for the purl side view.  Stitch pattern print previews, using default settings for layout:
the stitch pattern picture was basically a numbered graph paper image with no content, pattern text, and not particularly useful
other previews:
the suggested electronic repeat: The templates for electronic models have 4 rows between transfer sequences rather than 2 as is usual for Brother. They are needed for interactive knitting where the KC passes are represented onscreen as well, Dak knitters likely set the knit carriage change knob to select needles on KCI or KCII.
For punchcard end-use, change the machine setting for print preview to Brother/Knitking standard punchcard, click ok. When you choose Fair Isle, DAK will reverse your design and that may mean that there will be two eyelets side by side or double stitches transferring because the transfers are being made in the wrong direction. DAK will invert the pattern from left to right if it has the knit method Fair Isle or Wrong Facing. If it has the Right Facing method it won’t be flipped. The knitter still needs to sort out whether right side facing or wrong side facing makes any difference in their particular brand machine outside the Dak environment. The need for added mirroring for correct transfers depends on the download program ie Ayab mirrors any programmed image automatically, or the specific brand machine ie punchcard vs. electronics may behave differently. An easy test is to use the repeat on a small swatch, if side by side empty needles appear on the needle bed, the pattern needs to be reversed. Any lace designs suitable for a punchcard machine, when they are knit on my 930 require mirroring unless the png is saved mirrored horizontally in the paint program used to create it prior to download to the machine.  the repeat:
The numbers on the left correspond to carriage passes, not design rows. While the electronic template represents the interactive kitting repeat and differentiates between rows for use of the LC and KC, leaving the KC rows unlabeled, that distinction is not made for punchcards in any way, and marked numbers are not in sequence. Published Brother punchcards contain additional symbol columns for added guidance on settings and carriage passes.
Assuming the knitter knows whether the programmed repeat will need to be mirrored or not to knit properly on their specific model knitting machine, the 24 stitch punchcard version should work on both model machines.
The numbering on this punchcard template skips 2 numbers for knit rows between transfer repeat segments as seen in the first sample, and in this later repeat, the number sequence interruptions are marked in red. In punching long cards especially, renumbering the whole would make the repeat easier to follow. This stp pattern was also created using the pencil tool in combination with symbols. In the print preview, there were 2 errors in the Dak printouts, the three blank rows rather than 2 in the outlined section between transfers, and transfers in 2 different directions occurring on the same row with the same carriage pass. I have no way to test whether the same issue would occur in interactive knitting using my own stp file. My repeat, drawn in Numbers on the right, is numbered in design rows. When choosing print, the global options allow for editing items out such as company name, date, format by simply clicking in the associated boxes choices can also be made on how to represent stitch units If the plan is to create a punchcard template and the repeat is too wide, an error message appears Paper size measurements in page set up other than US letter

other associated menu choices It is possible to save the template as a bmp of the full image. The size of the file is shown to the right of the pixel count number settings for the clipboard or bmp file, which will vary in proportion to the stitch and row count. Click on the floppy disk icon to save.  My hack for reducing the onscreen size of the templates for screengrabs I could trace in a spreadsheet was to use a 600 mm setting for punchcards, and 350mm for electronics instead of selecting a paper size. The actual printing to scale is not an issue at the moment, but it is possible to print templates to full size, involving a bit of trial and error with individual printer settings and math.
The proof of concept swatch, knit on a Brother 930 KM, mirroring the image was not necessary, the dropped stitch was a surprise design feature when the swatch was very lightly pressed its.png Regrouping after a review of my pencil tool repeat by Softbyte support: the original stp has an error in it on row 11 where yours truly had eyelets being created by having the same stitches moved in opposite directions in the same row. It is interesting that I was able to save the stp without receiving an error message as seen in this instance below when the pattern was being redrawn with transfer symbols on the wrong row, The amended final repeat,   in turn, produced a correct punchcard template using the print preview As an additional lace template test, I repeated the process on a portion of an stp file shared generously shared by a DAK FB group knitter along with photos of a completed, lovely lace sweater using it.  The results are shown sideways because of the repeat length. The 950i template places four rows at the end of each lace sequence, while as seen in the published repeat of a different lace beside it, there should only be 2. The carriage passes made by the KC in traditional lace knitting though they advance the row counter, do not advance the pattern unless it is selecting needles as well, ie in trims that combine lace with the slip stitch setting. Exceptions to the 2 blank rows rule occur when the lace shape reverses direction such as in zig-zags, or when plain knit or pattern rows are planned deliberately to mix and interact with the lace design. Please see the previous post for more on lace charting and explanations for those in-between added pairs of rows variations. Brother knitters outside the dak environment may use the templates as they are, but setting the knit carriage for pattern selection as well on KCI or KCII.

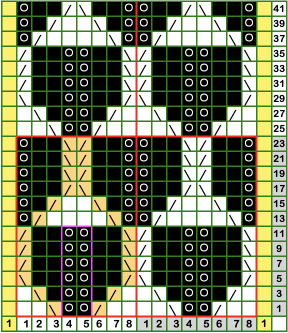

This is another lace stp pattern built using the pencil tool method. The charted symbol diagram was published in a Japanese magazine along with its published punchcard design. There is an intentional extra row at the bottom of the repeat, making it “wrong” if the intended use is on a Brother machine as a test for how the template might handle it in the print preview. Template previews were created using the setting for Brother standard punchcard bulky or Brother 950iFacilitating correct DIY designs, in addition to the warnings if there are missing symbols or any other problems with the design and their respective row locations, the module provides a warning about that extra row, explaining that if the generated pattern is used as is, the bottom row should be moved up or the LC should begin pattern selection from the right. The electronic preview continues to have a series of 4 blank rows between transfer segments. The punchcard template has 2 blank rows between each transfer segment and matches the published pattern with a 3-row exception toward the top of the card. The renderings below begin with the DAK punchcard template on the left with its confused numbering, the extra empty row at the bottom of the repeat was eliminated. The overall repeat is mirrored. It is followed by the published pattern associated with the chart, pixels are then marked for left and right transfers, followed by my amended final repeat, which when knit on the 930 required mirroringLace tool use instructions begin on page 299 of the third module user manual, Stitch designer. From the manual: when the Lace tool is clicked, lace patterns can be created by using the LMB or RMB to click and hold on the stitch cell where the eyelet needs to be, after which the mouse can be dragged in the required transfer direction and let go on the stitch that needs the corresponding decrease. Intermediate transfer stitches will be added automatically where appropriate. If the button is clicked and the stitch pattern has a method that is incompatible with lace, the warning that is shown on the right will be displayed. The Wrong side facing texture is probably the most natural choice because this is generally considered the normal method of knitting on Japanese knitting machines. Sections of Lace and Fair Isle may be used in the same stitch pattern and either Fair Isle or Wrong side facing texture are good choices when working with lace patterns.
If either of the Right / Wrong side facing texture methods is used, and there is only one color per row, it can be transparent or opaque. If there are more colors per row, the opaque color is seen as the real yarn color, while the transparent colors are regarded for memo purposes.
The lace smart symbols have an associated ‘texture’ which is used to see a representation of the finished knitting. This representation is not entirely accurate as decreases have to be shown on a single stitch cell instead of over the two adjacent cells that are affected. However, the bias of the transferred stitches, as well as the lace eyelets are well represented to give a good idea of how the stitch pattern will look when knitted.
The symbols that are specifically used for machine lace knitting are displayed with a light green background in the Symbols Organizer. The same repeat as above was redrawn, with that extra bottom row eliminated  The associated template preview for the punchcard nearly matched the one that was obtained with the pencil tool chart, had some differences: the previous image was mirrored although no dak settings were changed. As in all punchcard template numbering, the knit row numbers are skipped in the sequence on the left, so they will not match design row numbers, the small flower motif is placed differently  This sample was knit using the pattern drawn with the pencil tool, pre mirrored for use on the 930. The convention for lace designs is that they must contain an even number of rows, the one on the right is 47 rows, knits properly, but is suitable only for a border. Here a pair of extra rows were knit, followed by design row 1A wider swatchWhen attempting to use this repeat for a continuous one, unless the total number of rows is an even number, the second repeat will reverse the direction of the transfers, resulting in mispatterning and multiple side-by-side empty needles. Changing the total repeat to 48 rows by adding another blank row places all transfers properly. The 12X48 png
Adding extra knit rows at the top of the repeat ie. 6 or 8 may make the alignment of the 2 shapes to each other more pleasant.
The challenges in DIY lace patterning are many.
The same design was redrawn using only the lace tools. The appearance was the same as in the previous draft, the print preview template was two rows shorter, 46 rows long, no longer mirrored, with the flower shape slightly lower than in the other sample, it is shown here alongside the Gimp png draft for exporting the png used in the samples. Knit in continuous pattern with 6 knit rows added before restarting with pattern row 1 with LC on the left A half drop repeat is also possible. To achieve this test of a repeat drawn in a paint program, I  knit 2 rows after the last “flower” eyelet and had to flip the repeat horizontally before continuing for the top half of the repeat, producing a very different look.  There is a transfer error in the knit swatch on the right where I “repaired” a dropped stitch. Edits would be needed if one is determined to make this pattern automated as a continuous design.
Options for manipulating stitch designs in dak appear to be the following. Interested in developing an automated brick repeat for the above design, this was produced outside dak as a guideline for entering the symbols in stitch designer Using the lace tool, the areas marked in red highlight cells where wrong symbols for stitches in those areas were initially created using the lace tool. Use of the pencil tool was necessary to replace the incorrect symbols. The stp was saved with no error warning, but the resulting repeat was identical to my self-drawn one with the top half of the bricks knitting in the wrong direction resulting in mispatterning and double eyelets.
Saved stp files may be opened and further edited using either or both the lace tool and the pencil tool.
With respect to the use of the pencil tool, from the manual: “It is possible to place lace symbols onto the stitch pattern manually by activating the Pencil tool, then selecting and placing each symbol where required. However, this can easily lead to errors as the placement of each symbol needs to be well understood.
The “Check once for color changes etc.” option in the dialog can be clicked after which dak will either display “No errors found” or it will display error messages such as the ones shown here.
Clicking “OK” returns the program to the workspace where errors may be corrected. DesignaKnit does not mark the pattern when these errors occur. After correcting, “Check” can be run again to ensure all errors have been eliminated. Using the Lace tool to create lace will greatly diminish the chance of errors.”
I have encountered instances where no error messages were received, the stp was saved successfully for supposed knitting, have been told there are edits and future updates underway for both version 8 and version 9.
the right mouse button is used when drawing fine lace designs, which is not part of my present explorations
In theory, the Lace tool will:
insert the eyelet, transfer and decrease symbols in the direction of the drawing
insert a double decrease symbol where the lace transfers occur  onto a single stitch from opposite directions
prevent the placement of eyelets on adjacent stitches within the same row
warn of invalid lace sequences when saving or checking the pattern
remove the eyelet, its matching decreases, and any transfers  in that sequence with a single click of an eyelet symbol with either the right or left mouse buttons
Brother knitters need to keep this in mind when using the lace pattern in the dark environment, the knit carriage will need to be selecting needles as well. If using the templates to generate patterns for use with other download programs, the traditional use for Brother lace and punchcard machines is to have the knit carriage not selecting needles. To use the given template for the electronic in that manner, 2 out of the four blank rows between each series of transfers may be eliminated and the pattern from the electronic template if within the punchcard repeat restrictions, may be used on punchcards as well. Having plain knit rows not selecting, in my experience, makes for easier unraveling and returning to an all knit row when rows need to be unraveled to correct errors or knitting falls off the machine.
All punchcard templates keep the number sequencing for the electronic repeats, removing the extra interactive knitting rows and their numbers from the electronic template, reducing the repeat to design rows, which results in the numbering sequence on the left not matching the actual total number of rows in the repeat, making it ineffective if following those numbers when punching cards.
Making things work: the dak repeat for the brick arrangement, there are single blank rows before selection for the shifted pattern begins,  my edit in a spreadsheet, the yellow cells mark rows missing in order to get the lace carriage back to the left side before the next pair of all knit rows.  The full repeat was trimmed to 12 stitches in width, 48 rows in height, opened in ArahPaint, and drawn in brick repeat, shifting the top by 6 cells. The green lines mark the original single blank rows followed by the pairs of added blank rows with no markings, the needed corrections the Arah image was saved as a png, knit on my 930 using img2 track, and mirroring
The proof of concept swatch for the now fully automated pattern   When a repeat is sorted out it is easily modified to create other variations. Here the small flower shape is eliminated, as well as the first transfer sequence to produce stacking triangular shapes. The repeat is now 10 stitches wide by 28 rows high, so suitable only for electronics.  The swatch was lightly pressed, prior to that, there was actually an interesting 3D quality which can be common to many unblocked lace patterns. If the knitter wants to retain that quality, the quandary is then encountered as to whether one also may want the piece to lie flat, particularly at the sides and the top.
The above repeat was mirrored for use on the 930. With lace as with other fabrics, the repeat may be tiled and programmed to the width of your knitting, here for use in a 30 stitch swatch. While in other fabrics a plain knit border may be added by placing black cell vertical cells on each side of the wide repeats, this cannot be done in lace, because those selected needles will attempt to transfer multiple needles in a single pass, which is not possible. Brother offers edge stitch plastic cams to help with that.  The cast on in this instance is a provisional one, with several rows knit prior to beginning the use of the lace carriage.

Revisiting lace repeats, symbols, and charting

WORK IN PROGRESS

Lace knitting for many introduces knitting with 2 carriages for the first time. The lace carriage advances the cards, mylars, or programmed pixels a design row with each pass. In other stitch types the knit carriage, once it is set to select needles ie using the change knob on KC, in punchcard machines,

or KCI for end needle selection, KCII for no end needle selection in electronic models, also advances the pattern a row with each pass. The advances happen in Brother machines when any carriage locks onto the belt and moves past the center 0 marking as it travels from one side of the stitches in work and past them to the other.
Electronic and punchcard published lace patterns may be used in both machines as long as when punchcard models are in use, the pattern repeat is a maximum of 24 stitches wide or a factor of 24, such as 2, 4, 6, 8, or 12 stitches in width for each complete repeat segment. This exchange is possible because the knit carriage does not advance the pattern repeat in both models, it is left set for and performing plain knitting, with the change knob set to N-L.
When the knit carriage(s) is (are) also set to produce patterning, extra caution needs to be taken with the alternate carriage being off the needle bed so both carriages do not lock onto the belt, which will then be anchored on one side, and pulled toward that spot from the opposite side, possibly causing it to break. One instance in transfer lace knitting when the knit carriage also selects needles is in knitting automated edgings.
Many other stitch types may be knit with 2 knit carriages selecting needles from opposite sides. It is one way to have frequent color changes without using a color changer, tensions and cam button settings can also be different. On an electronic machine, each pass of each carriage advances the design by one row. Here patterns stop being interchangeable. With 2 carriages selecting needles, when a punchcard machine is used, as the alternate carriage makes its first pass from the opposite side, the card does not advance, so the previous preselection is repeated. To use a published repeat for either machine on the other, the repeat needs to be adjusted.
If one of the two knit carriages is left set to N-L, it will not advance the pattern, providing an easy way to add plain knit rows between patterned ones without having to alter cam button settings or the programmed repeat. In transfer lace knitting, there are many considerations when attempting to represent carriage movements for both carriages in a single chart when the knit carriage is not also selecting in pattern, but simply knitting and not advancing the repeat. The first illustrations use the machine knit repeat developed from a hand knit pattern inspiration many a year ago 2013/12/05/lace-mesh-motif-charting_-mac-numbers.
Since then software versions, computers, operating systems, and my use of them have evolved and changed. I have edited the post with additional information, inked in a different color.
Experimenting with DAK has brought me back to thinking about the issues in charting lace fabrics in particular.
Lace knitting tips including card and electronic markings for transfers and knit rows

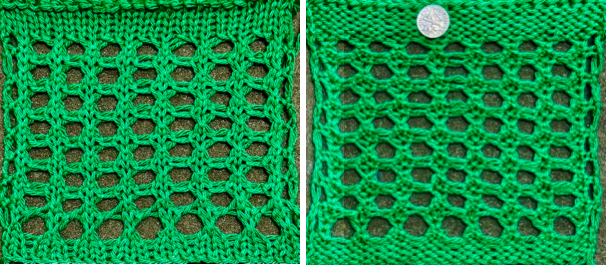

Mesh grounds: 2017/07/29/to-mesh-or-not-to-mesh-5-design-repeats/
Info on lace meshes for both grounds and patterns 2021/05/12/to-mesh-or-not-to-mesh-8-more-numbers-meet-gimp/
Two of the posts on using Studio repeats on Brother brands:
2019/02/23/revisiting-use-of-lace-patterns-studio-vs-brother-machines/
A Studio lace card with single blank rows between transfer segments knit on a 910
No symbols are used in this chart, generated using DAK template print preview for knitting with a Brother model 950 i. The red cells represent transfers to the left with LC operating from the left, the green cells represent transfers to the right, grey cells indicate knit stitch rows.
The knit rows in most lace unless the pattern is combining KC needle selection for slip, tuck, FI, or weaving do not advance the pattern rows.
LC actions are marked on the left, the KC ones on the right
The LC makes 4 passes:
1: preselects for transfers to the left as it moves to the right
2: transfers to the left as it returns to the left,
3: transfers to the right as it moves to the right, there is no preselection for the next row
4: moves back to the left with no transfers or preselection
The KC follows with 2 knit rows. In the chart for this pattern, representing only the repeat, there is no room to indicate KC passes on the left-hand column
The appearance of the chart or template changes if 2 empty rows are added to represent the KC passes. It may help one understand what is happening but in Brother machines, 2 of the 4 blank rows here would need to be eliminated for the pattern to knit properly.
Making distinctions in the programming for the repeat depends on its use. If one is using DAK for interactive knitting, by necessity those extra rows are needed to allow for the view onscreen of the rows involved in the plain knitting with the knit carriage. I would assume knitters are instructed to set the knit carriage to KCI or KCII, each carriage will advance the knitting for a row with each pass, extension rails are a necessity since each carriage needs to engage the belt for patterning. Using the same repeat for drawing on a mylar sheet or for download outside the DAK environment the greyed out 2 extra rows can be eliminated in marking squares or entering pixels and punching holes (depending on repeat width), and the remaining repeat should work.
If the image is being downloaded as is to an electronic, it may be used as given, with the knit carriage selecting needles and the cam button set to KC I or II.
Because printing template previews are produced using the fair isle option, the design will be mirrored, a necessity in some electronic models, but for punchcard knitting the same repeat with the extra rows removed, if accurate overall should be usable as-is. The numbering for the punchcard machine sequences however reflects the subtraction of the extra rows in the electronic template, the provided numbers then have skips in the sequences and do not match the actual design row numbers useful when a card is being punched.
Electronic carriages are equipped with a magnet, and must always travel past the center needle 0 position center mark on the needle tape. Markings on brand-specific published punchcards give clues as to which carriage to use and for how many passes. They also may vary depending on the year the punchcards or mylars were issued. To review, here are some of the markings commonly found

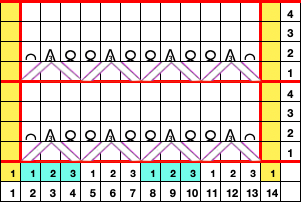

Lace knitting on punchcard machines a symbol summary:   There are many differences in transfer lace design: design transfer segments may vary considerably in the number of lace passes and transfers between each pair, or more in some instances, of knit rows. In the pattern below, only 2 rows of knitting are completed after 20 lace carriage passes, the bottom half is repeated X times, the top half X times, adding even more complexity. Depending on the knitting machine model, the pattern may also need to be mirrored to knit accurately. Published punchcard books offer patterns with potential errors usually sorted out. Both punchcard machines and electronics scan the card or mylar inside the machines, several rows down below what is visible to the knitter at eye level on the exterior of the card or mylar slots, so markings on both need to be made accordingly. This is a fact that needs to be considered with cable downloads of the same patterns if entering memos for knit rows. In the case of punchcards, Brother reads 7 rows down, Studio 5. In fabrics other than transfer lace adjusting for the brand is straightforward ie to knit fair isle, tuck or slip pattern if using a Studio company supplied punchcard repeat, simply start the Studio card on row 3. If punching your own, design rows match, if the blank card is marked for Brother, the numbering is accurate by default. Brother transfer lace cards begin with pattern selection, Studio brand with 2 knit rows. In this repeat, a mesh repeat is created first moving to the left, then to the right, the 2 knit rows follow 2 LC passes for transfers to the left, 4 LC passes for transfers to the right. Brother row one marking is underlined with a blue line, Studio with red A Studio repeat adjusted for use on Brother also illustrates that the number of knit rows are only two, the LC passes can vary in number between knit rows. Here LC passes are marked with outlines around pertinent row numbers on the right   Brother vs Studio: extra knit rows in Brother are not physically left as blank rows in cards, the rows for KC are still 2 blank ones, while in Studio cards there is a blank row for each knit row in the pattern. Both these samples have a 6 knit row sequence. Because Studio begins with 2 blank rows, in the repeat on the right only 4 rows are left blank at the top of the repeat. Adjusting for extra knit rows, Studio to Brother These samples are from Brother punchcard volume 4:
single blank rows between transfer segments varying numbers of blank rows between repeat segments multiple rows of knitting (8) marked aside a single pair of blank rows Some electronic examples using the 2-row spacing between transfer segments: this is a page directly from the Stitchworld electronic pattern book a pattern published on a full Brother mylar sheet this is from a studio mylar, the same holds true in terms of the number of empty rows between transfers, that is the reason why most transfer lace patterns unless they are designed as studio simple lace where transfers are made with each carriage pass, patterns may be exchanged between both brands, the only difference being studio starts with 2 blank rows, ends with transfer markings, Brother starts with transfer markings, ends with 2 blank rows.
Electronic repeats are interchangeable after taking that into account, but not mylar sheets between machines, the respective brand mylar readers differ in the number of rows below eye level where the electronic readers scan the design, the set or starting line will be in a different spot.

Transfer lace may also be combined with other stitch types, each with its own considerations as in these instances both types of machines have the KC selecting needles as well. The punchcard published patterns need to be adjusted for use on electronic models. As already mentioned, punchcards do not advance with the first pass of the alternate carriage from the opposite side, while electronic models advance a row with each pass of both carriages:
adding KC slip stitch selection for creating ruffles and doilies
tuck stitch
weaving 1, weaving 2
fair isle

The lace module in Dak in theory will do the work for the knitter once the pattern is entered as symbols. Eyelets will be represented in single rows, a shorthand version of the previous samples. Reviewing how the transfers would appear on the knit and the purl side respectively. The LC can move only one needle at a time, so when multiple needles need to move to place the eyelets properly, the options are to use a hand tool performing the moves or to develop a pattern with multiple transfers in each segment of the final repeat. The full repeats are often very long.

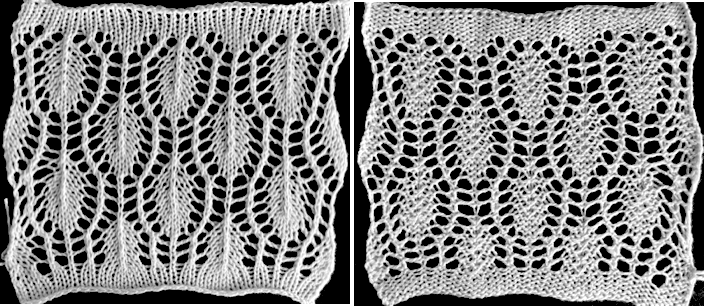

Approaches for developing DIY design repeats:

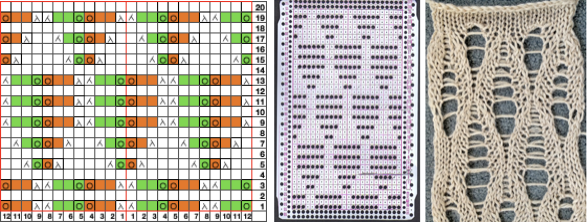

2013/07/23/from-hand-knit-lace-chart-to-punchcard-1/
2013/07/24/from-lace-chart-to-punchcard-2/



My DAK explorations 1

WORK IN PROGRESS

Resources for users or those curious about the program are offered below. There are 5 help files and 5 manual files. They don’t interact at all and work completely independently from each other, can be opened from DesignaKnit or from a file browser window, are not available until the program is purchased and installed, each may be downloaded as a PDF. DesignaKnit Professional contains 5 modules:
Standard Garment Styling has built-in sweater patterns that may be adjusted to custom measurements and gauges
Original Pattern Drafting: allows for using a pattern designed in garment styling to custom features such as knitting the design sideways or making pieced such as the front and back different lengths
Stitch designer is a paint program. A grid may be created to match the stitch gauge for a sense of aspect ratio of the design in the finished piece. When the type of knitting for the project is selected, warnings as to possible errors in any rows provided
Interactive Knitting: with the proper cable connected to the computer and the knitting machine the design is followed row by row, voice prompts may be activated so as to receive warnings when to change colors as well as counters for the number of rows between shaping ie increases and decreases while knitting sleeves
Graphics Studio: convert graphics to stitch designs, including color separations for DBJ, color reductions, scaling for large non-repetitive designs
When the program is installed and opened the manuals are found listed after using Help
in a series of tabs, ending with that for section 5. There are 5 help files and 5 manual files. They don’t interact at all and work completely independently from each other, can be opened from DesignaKnit or from a file browser window.
Online references:
a quick summary of version 9 upgrade features
https://softbyte.co.uk/DK9UpgradeForms/DK9_upgrade_features_F.pdf
videos DesignaKnit9 graphic studio
https://softbyte.co.uk/dk9englishvideotutorials.htm
the DAK Facebook group
https://www.facebook.com/groups/523785160964950
members of the group have access to teaching material shared by Sheila West https://www.facebook.com/groups/523785160964950/user/1164753159
Youtube tutorials for DesignaKnit 8
https://www.youtube.com/c/Knittitude/videos?view=0&sort=dd&shelf_id=0
a search for DesignaKnit9 tutorial yields mixed results, including many for version 8
https://www.youtube.com/results?search_query=designaknit+9+tutorials
Graphic design studio search https://www.youtube.com/results search_query=designaknit+graphic+design+studio
offered courses at knititnow, search https://www.knititnow.com/Courses/#
login required as well as fees

Brother magazines for a while published accompanying pat files for DAK, they can be found http://machineknittingetc.com/catalogsearch/result/?order=date&dir=desc&q=DAK+files+Brother
also for Studio http://machineknittingetc.com/catalogsearch/result/?order=date&dir=desc&q=Dak+files+for+silver+reed
and Passap http://machineknittingetc.com/catalogsearch/result/?order=date&dir=desc&q=Dak+files+for+passap

I am a complete novice at the use of this program, tend to start learning new tools by comparing them with what I am familiar with, which in my case are spreadsheets and other paint programs. I have decades of playing with changing file formats depending on end-use. My questions on aspects of the program’s use are not intended as criticism, they are born of curiosity and the attempt to explore a new tool.
I am using Dak on a PC, at the moment my blog posts are created exclusively on my Mac. There is much that is fluid in addition to learning the software.

These are the formats that can be opened, converted to stitch patterns using Graphics Studio Stitch Designer, or opened as a background image in Original Pattern Drafting and used for tracing a garment piece: BMP, GIF, ICO, JPG, PCX, PNG, TGA, TIF, WMF, P?M. There is no export option for saving the repeat images in stitch design file formats for use in other than the native program. Passap CUT files are completely excluded.
I lean towards looking for workarounds to accomplish what I want if the task is not native to the program I am using.
One way to achieve conversion for DAK file formats for use as a png or bmp download with other cables and software is to isolate and select the repeat unit, copy it to clipboard, paste in a paint program, export as png or other desired formats There is a handy option in Dak when thumbnails is chosen from the image menu, one can browse through saved folders containing compatible file-formats including the images in those Brother magazine downloads. The small preview will identify the specific file size. When you left-click on your choice, it will appear enlarged at the bottom left of the view window, it has been moved from its corner in my screengrab, left-click OK on the enlarged image, it will open in the program window. Minimize the size until no further reduction is allowed by using the magnifying glass or the scroll function in the mouse. This is a different operation from scaling the original to a different size. The save-as option for the image offered at that point are:
For choices emulating export in other paint programs, right-click on the image, choose copy, open a paint program (Arahpaint is my favorite at this moment), and from its image it menu choose paste. Using Arah’s color exchange, the image may then be converted to black and white for 2-color work and is saved in a format usable with other software and in other machines. Here the image has been pasted in Gimp using the same process, but if the image needs to then be reduced to BW, Arah is the easier and predictable tool to use.
Activating the working palette, referred to as yarn colors: from the manual It is possible to achieve color exchange easily in Dak as well. Most operations appear to rely on an understanding of its symbols and what might be considered a language one must learn in order to use the program effectively. By activating the view yarn button palette, the items that may be viewed and changed are:
A: represents left mouse click on that color
B: represents a right mouse click on that color
C: click will swap A color to B color
D: needle hook alone represents non selected needle, pusher, or simply color depending on the machine model
E: color worked on patterning needle ie contrast in fair isle, knit stitches in tuck or slip setting It is useful to establish working history using the same design motif. In the first image, left-click on red, the from color, right-click on white, the to color, click on the double arrow to make and apply the change
The process is repeated with left-click on blue, right-click on black, and on double arrow. White squares appear in the final color choice boxes in the bottom image
The print dialogue allows for saving patterns as bmps. One is walked through the following steps with a series of windows. To save the repeat as bmp
choices may then be made about file name and the location for the save, If there are no “short” needles in the image being processed as in the last screengrab above, there will be an error message onscreen, pointing out problems in the numbers of colors present in rows ie more than 2 for FI.  This is fixed by clicking on either the “needles” of one of the two active colors in the yarn palette to make one color the ground, the other the contrast. The results from this process for printable bmp files are shown below, not for a bmp that may be used to knit the pattern on an electronic machine using a different download method. Here the resulting stitch pattern picture is shown in color reverse as well.  Using other print options: for this repeat, the color change page is blank since the fabric is being knit as a 2-color fair isle, without added color changes  Printing pattern text will do exactly that in longhand form, for each stitch and each row of the repeat

Dak is the only program I know of for home use that allows for visualization of the knit design with approximations of knit stitches, seen here in both the BW and the original color version of the above FI design, shown as knit stitches on the public side. The image needs to be a minimum size for the appearance of the details as is true in most paint programs for grid views.   At this time I am continuing to knit on my machines with punchcards and using Ayab, or img2track on my electronics, have no immediate plans to change that, hence my interest in using DAK software features while keeping in mind the possibility of using the final repeats on other machine models.

The information on using the stitch designer lace module originally written here has been moved to its own post along with new content, updates, and corrections.

Geometric shapes on ribber fabrics with tuck stitches 3

Previous related posts:
2 color ribbed brioche stitch on Brother knitting machine 1
Geometric shapes on ribber fabrics with tuck stitches 1
Geometric shapes on ribber fabrics with tuck stitches 2; knitting with 4 carriages
The last post on using Gimp:  2021/07/18/gimp-update-for-mac-2/
The method for color separation used for mosaics

The sources of inspiration from hand knitting or industrial knitting machine designs are endless. There are many features that simply cannot be duplicated, sometimes compromises can be reached that can achieve only imitations of the original. To my mind when knitting garments or long pieces the greater the degree of automation, the less likely one is to have patterning errors occur, in ribber fabrics, they are also more complicated to correct than single bed knitting.
I recently came across a pin of a Ravelry hand knit pattern which led to my return to this topic once more, including perhaps the addition of more colors. The plan is to create a repeat which may be knit using color changes every 2 rows. Each design row knits each color twice, so the standard built-in KRC separation is not a consideration, though the same cam settings may be used in those fabrics as well.
The required color separation has been discussed in several posts on the various forms of DBJ, a review:
The initial test repeat is 18 stitches by 44 rows, designed using 2 X 2 blocks, to begin with. How it might appear knit in fair isle:  Transitions in charting visualizations:
A: FI repeat with pattern progression in two-row increments
B: every even-numbered row beginning with row 2 is color reversed
C: B repeat is doubled in length to 18X88 for initial samples
D: repeat adjustment for a first try at introducing 2 additional colors End needle selection is canceled, the first and last needles are in work on each side on the ribber knitting every row, the first preselection row is from right to left, cam buttons are set after the left side is reached. Knitting in these samples began with the blue yarn in the number 2 position in the color changer. The ribber remains set for knitting in both directions throughout, the images on the right do not reflect the amount of surface 3D textures.
with the main bed set to tuck in both directionsLock settings are easier to achieve on the Passap than switching out cam buttons in Brother machines. This was knit using 4 carriages. Color one knits with the main bed set to tuck both ways, color two knits with the main bed set to slip both ways. The slip stitch reduces the width of the fabric considerably Here each color alternately tucks and slips. The choice of cam buttons matters, tucking first from left to right, slipping from right to left, with cam buttons set COL after the first preselection row This last cam setting appears to my eye to produce a texture “close enough” to the inspiration fabric. Attempting to add more colors: the repeat, D, is still 18 X 88 but is now shifted slightly.  Somehow the slip cam button was not set, so the knit carriage tucked in one direction while knitting in the other. I am vaguely reminded of illusion knits. Considering altering both the color choices and placements again. A way to imagine exact color change placements beginning with solid colors repeats once more, which can be followed by new color separations. The existing repeat may be reduced further to 18 X 64, eliminating some of those extra rows in the center of the chevron shape  The new BW image, tiled: Whether or not the design is intended to retain chevron shapes in alternating textures, actions may be plotted pre knitting in any way that visually makes sense to the person designing the pattern and tools available to them. Reversing the png so that the more textured stitches will begin with the color in yarn position 1Using either repeat, color changes now occur after every 32 rows knit. Another color change location clue is in the needle selection change above and immediately following the red border in the chart on the left.  Adding colors can be planned cautiously or allowed to happen randomly depending on the preferences of the designer and end-use. Ribber fabric designs are not visible until several inches have been knit, too late to catch color sequence errors. Some machines allow for memo placements or sounds to help track color changes, but only within the initially programmed repeats. A quick spreadsheet can provide customizable checkboxes or added information. For an attempt to retain chevron shapes in different textures: When using 3 colors, rather than 4, the texture of the zigzags on any specific color, will vary in placement. It is easy to change colors in any chart to approximate those that will actually be used in the knitting.  Proof of concept: each of my yarns is slightly different in both thickness or fiber content from the others, which can be a drawback in resulting textures. As in any 2 color dbj, if 4 consequent rows are knit in one of two colors the positive and negative portions of the image reverse, as seen at the top of the swatch. The green was not intended to be used originally, the white yarn simply ran out. Such accidents at times may provide pleasant improvements. There is bleed-through of each color behind the other in the tighter knit areas as well which contributes to visual color blending, noticeable even in the areas with fewer tucked stitches. Splitting zig-zags into triangles, working color 1 with color 2, followed by color 3 with color 4 pairings A PDF including row numbers and space for notations zig zag
An editable Excel spreadsheet created as an export from numbers zig zag
For Mac owners a Numbers doc. zig zag
A simpler repeat suitable punchcard owners as well using only 2 colors The test swatch and observations: patterning was begun with color 2, yellow.
The yellow yarn is 12/16, the maroon is 2/15 in thickness.
The triangle, because slip and tuck stitch settings are used, is compressed in height, while there is enough tuck happening to still make the knit wider.
The pattern is 24 stitches wide, the swatch was knit on 40 needles. Smaller swatches are fine for testing tension and colors. If committing to larger pieces, tests on at least 100 stitches by 100 rows are needed for gauge calculations in any double bed work or very textured patterns on the single bed.  On some occasions when a far larger number of needles are in use, problems may turn up that require going back to the drawing board in terms of items ie tension settings, weight used, etc.
A: patterning was begun with thicker yarn, the yellow, in color changer position 2, both yarns are 100% wool
B: KCI, end needle selection on, a 2 color “beaded” edge is created
C: KCII, end needle selection canceled, patterning occurs on end needles
D: transferring to the top bed and using the standard latch tool bind off for these fabrics is far too tight  The tiled repeat, 24X48, does keep the stitch quality constant for both colors, Assumptions based on optics of tiling are not always accurate clues to potential patterning errors, here those darker lines are part of the actual design Continuing on a 24 stitch repeat, the original design may be rendered at double height and separated once more, doubling the separation height to 96 rows There are days when either or both machine and knitter need a break. At the start of the first swatch, the cam buttons were not set, resulting in plain knit stripes. At its top, the purple did not get picked up properly from the color changer, and the knitting of course fell off the machine. On a second try, the same issue happened again with the purple yarn. Multiple incidences of such events were fondly nicknamed “dropitis” by my students. The test is on 24 stitches, the width of a single repeat, the triangles are much more balanced in size, this knitter is putting this pattern to rest.  Another try at the diamond shapes that began this topic. The first .png when tiled appeared to not have enough space between the shapes, was amended to this the differences when tiled the color separation can happen completely within Gimp using color invert the white yarn is an acrylic, slightly thicker than the purple toned one. Sometimes simply exchanging yarn positions can change the qualities of the overall fabric. The repeat begins with 2 blank rows. To achieve the tighter white shape as opposed to the honeycomb purple one, at the start of the repeat that color needs to be in use on rows where knit stitches happen as the KC, set on slip to the right, knits needles brought forward to D position. Red in this chart segment marks pertinent rowsBoth with hand knits and commercial knits because of the hand actions possible on both sides in the first, and as many as 4 beds selecting and knitting on the other may be in use at the same time with more complex needles as well, there are fabrics that are difficult or even impossible to duplicate. There often are obvious differences in the results, but the journey may still yield results that are pleasing and worth pursuing. Another even more complex inspiration from a sweater attributed to Falke, Spring 20 collection, using similar stitch structures, but in addition, also transferring stitches between beds exposing a purl striped ground.

Tuck lace trims and fabrics 3

The term lace is often used in publications to refer to fabrics created with techniques other than the familiar hand or machine stitch transfers. In turn, the ribber may be added to working most of the fabrics with varying degrees of complexity. Some variations are possible only on specific machine brands, at times possible in others with adaptation and addition of other techniques. Many combination fabrics may be achieved, mixing carriage settings or adding hand techniques. A list of common terms applied to “lace” that include tuck patterning:

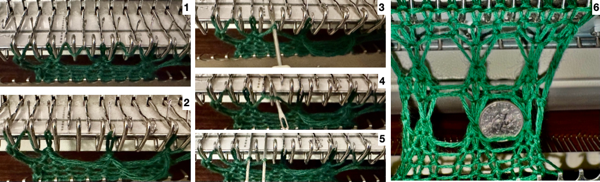

Hand transfers: used to create eyelets, possibly in combination with pattern stitches out of work, and moving stitches singly or in groups
Tuck and lace: transfers combined with tuck stitch patterning
“Lace like patterns”: possible in machines such as Brother and Passap, which allow for the same stitches tucking in one direction, slipping on the return of the knit carriage to its starting side. It matters which function leads in the pattern
Tuck lace: tuck setting in both directions with specific needles out of work
Ladder Lace: worked with columns created by needles left out of work, tuck being an option in the knit portions
Punch tuck rib: every needle rib combined with tucking pattern on the knit bed Drive/ drop stitch lace: stitches start on either of the 2 beds, loops are picked up and dropped on the opposite bed
A list of the headings for most of the tuck stitch variants covered in my posts is now added to the start of my blog index

Once a stitch has been tested,  unusual yarns, including wire may be used Getting back to basics: a punchcard sometimes supplied in factory packs provided with machine purchases, is shown here in 1/3 of the minimum 36-row card repeat, while the minimum electronic repeat is outlined in red, measures 4 stitches by 4 rows Adding needles out of work by simply choosing to cast on and working on every other needle it does not matter whether even or odd needles are in use, the pattern will be identical but simply shifted over by one needle. For frequent color changes, make the first preselection row toward the color changer to start with, keep notes as to where the repeat color selections happen as experiments are expanded, evaluate color choice as a third or even fourth color are introduced Though casting on and binding off both need to be considered for extra width, having sections of the repeat knitting in plain knit will help sort the needle arrangement and loop structures when tucked knits appear similar-looking    The repeat on any tuck row can help test the number of rows a particular yarn will allow before the number of loops in the needle hooks become too many to knit off well. The added texture, or elimination of any, could be used in borders or occasional horizontal portions of the knit Some of the concepts in the visualization of more deliberate color placement through charting was discussed in the post: Single bed tuck and slip stitch fabrics 2: adding color
A starting repeat from a Pinterest image inspiration: the blue yarn will knit on every needle the third tuck row on the machine the fourth tuck row with needle preselection for the first all knit blue row one blue row knit Accommodating those blocks of knit stitches in the pin also changes the repeat to six stitches by 6 rows, making it usable on punchcard machines as well Two from one: the same tuck repeat was altered by changing the needle out of work arrangements. Slub yarn may be used but changes the value of the lines formed by the floats created in the needles out of work gaps. In my classes, I encouraged students to create long swatches testing out their patterns in a variety of stitch types with color changes as well. Thet can serve as a visual reference to duplicate effects when time has passed. Here the tuck pattern, not suitable for FI at all, is tested as DBJ, followed by needle transfers between beds and adding the tuck setting. There is a dramatic difference in width, the wool yarn has a lot of “spring”, wanting to narrow when at rest The self-designed stitch structures may be further changed visually and complicated in terms of execution by adding changes to the ribber setting so that it does not knit every rowPublications for electronic machines do not always include pertinent instructions, but they will include out of work needle diagrams below each appropriate repeat. The gray cells represent white squares, which correspond to non-selected needles but also in this case to out-of-work needle position areas where open spaces are created. The 4, 6, 8 stitch repeats are also usable in punchcard machines. These are from the Stitchworld pattern book, all with the exception of 282 are to be used with needles out of work

“Crochet” meets machine knitting techniques: working with short rows

Some previous posts exploring hand techniques that might be considered to fall in this family of stitches:
“Crochet” meets machine knitting techniques: tuck lace trims (and fabrics) 1
“Crochet” meets machine knitting techniques: tuck lace trims or fabrics 2
“Crochet” meets machine knitting techniques: working with “chains”
Search for “wisteria”
“Crochet” meets machine knitting techniques: working with short rows 1, June 2017 began to explore some of the fabrics presented in this category in a Portuguese language publication I do not speak or read the language, so my swatches are best guess efforts at producing similar knits. Attempting literal translation is not always helpful, for example, guidelines at the beginning of the pub:
“CLARIFICATION FOR THE EXECUTION OF THESE POINTS
A: in crochet stitches, the scheme is repeated across the entire width of the machine
B: in the “crochet ends”, braids and flowers, thread only the needles. Islands as indicated by the symbols in the scheme. Alternative: in crochet stitches of gallons and flowers thread the thread only on the needles as indicated in the diagram symbols
C: when starting to weave the car must always be on the right side unless the symbols in the scheme indicate otherwise, for example, crochet stitch #9
D: in crochet stitches count a career whenever the tip of the wire stay at the other end of the machine
E: the tension must be adjusted according to the stitch and thickness of the thread to be used, in general voltages 1-3 are used.”
Some familiarity with larger-scale patterns in this family can help visually with duplicating them independent of the written original language directions.
These fabrics share common hand technique movements across rows, singly, or in pairs. Similar structures are not presented in numerical order in the pub but will be here.
The yarn choice makes a critical difference both in managing the knitting and in how blocking, or not, affects the finished fabric. The knit carriage travels many times across each stitch as the technique is worked, with possibly pilling, so softly spun yarns should be avoided.
Clean the machine of any leftover fibers, while avoiding over-oiling which may leave dark streaks in the finished product.
Cast-ons and bind-offs need to be very loose to compensate for the fact that the completed knit will have considerable sideways stretch. Chain cast on 2 in work, 2 out of work, end with 2 needles in work
bring all stitches out to hold except for the first 2 stitches on the right
COR knit 8 rows
push adjacent pair of needles away from the carriage into work position, knit a row to left
COL bring previously knit pair of needles out to hold
knit 7 rows, end COR
bring adjacent pair of needles opposite carriage into work, knit a row to left, end COL
COL when the last pair of needles is returned to work knit 8 rows
reverse shaping: bring the second pair of needles on left into work, knit a row, push the first pair of needles out to hold, continue the process for the desired length
The yarn used is a 6X18 rayon, a “no memory” yarn that changes considerably with pressing. The arrows mark an operator error in tracking the sequence, top and bottom edges are obviously narrower than the resulting mesh.  Number 11 is a close relative but worked on every other needle The rayon used in the previous sample, and a 2/8 wool, were less successful than a 2/11 acrylic in knitting the swatch. The stitches need to be as tight as possible while also needing to be able to knit off properly
make a very loose chain cast-on on an even number of needles, then drop every other chain, taking every other needle completely out of work, and ending with a needle in work
bring all stitches out to hold except for the first stitch on the right
I believe the directions are given for knitting only 2 passes, I preferred the look with the count doubled to 4, so, COR knit 4 rows
push adjacent needle away from the carriage into work position, knit a row to left
COL bring previously knit pair of needles out to hold
knit 3 rows, end COR
bring adjacent pair of needles opposite carriage into work, knit a row to left, end COL, knit 3 rows
COL when the last pair of needles is returned to work knit 4 rows, continue with
reverse shaping: bring the second pair of needles on left into work, knit a row, push the first needles out to hold, continue the process for the desired length
In the top part of the swatch I knit 8 rows at starting and ending sequences, feeling the sides were tight, 6 may be the best answer
bing off very loosely after the last stitch is worked for 4 rows
The same directions apply in this instance, the first sample worked with no needles out of work I added 3 chains between cast-on and bound-off stitches, making for a better top and bottom edge. The difference in width is highlighted on the bottom right, where I missed doing so between two stitches. At the end of each row, prior to reversing direction, I knit 6 rows rather than 4, end with 4 rows only on the last needle prior to binding off. The swatch was not steamed or pressed.
This knit begins on every needle I cast on chaining over 2 needles, followed by two extra chains where the ladder is expected, cast-off also with two extra chains in ladder spaces. The knit sequence is similar to the previous swatch, but needles are now moved in pairs
COR work first 2 stitches for 2 rows
push two needles on left into work, knit one row to left
COL *push first 2 stitches to hold, knit one row to the right
COR bring next two stitches on the left into work, knit one row to left
COL push previous 2 stitches to hold, knit one row to the right**
bring 2 stitches on left into work knit one row to left,
repeat across the row
when the last pair of stitches are left, COL knit two rows on them, and reverse shaping. Ending each sequence with two knit rows will produce fairly straight sides, knitting four rows on end stitches, except prior to binding off,  may echo the movement of the in-between spaces and make the ladders at the sides more visible Eliminating those ladders or floats, here eyelets are created where stitches are held for two rows. Care needs to be taken if stitches are dropped or other patterning errors are made in order to retain the correct pattern. Cast on and bind in this instance were executed with single chains added in between those on needles in work.
Version 1:
COR with the first 2 needles in work, knit 2 rows
COR bring one needle on left into work, knit 1 row
COL bring one needle out to hold opposite carriage, knit one row
COR bring one needle on left into work, knit 1 row
COL bring one needle out to hold opposite carriage, knit one row
repeat until there are 2 needles left in work, knit 2 rows
reverse shaping
end with 2 rows knit on the last pair of stitches before binding off
Version 2 adds 2 rows knit on every needle between holding pattern reversals, the fabric grows in length far more quickly
Cast on from left to right on every needle
COR knit 2 rows, bring all needles except for the first 2 on the carriage side out to hold
COR with the first 2 needles in work, knit 2 rows
COR bring one needle on left into work, knit 1 row
COL bring one needle out to hold opposite carriage, knit one row
COR bring one needle on left into work, knit 1 row
COL bring one needle out to hold opposite carriage, knit one row
repeat until there are 2 needles left in work, knit 2 rows, end COL
COL push remaining needles into work, knit 2 rows on all needles
COL bring all needles except the first 2 on the left into work, knit 2 rows
reverse shaping, ending with 2 knit rows on the far right
COR push all needles into work, knit 2 rows on all needles
COR bring all needles out to hold except for the first 2 on the right
repeat all
end with 2 rows knit on the last pair of stitches before binding off

chain cast on 2 in work, 2 out of work, end with 2 needles in work
worked in 2 pairs, 4 needles at a time
COR knit 6 rows on the first two pairs of stitches on the right push pair of needles on the left into work knit one row push first 2 of needles out to hold knit 5 rows CORpush next pair on left into work, knit one row  push the third group  on  its right into hold position, knit 5 rows across remaining  4stitches bring a new group on left into work, knit one row
bring the pair to the far right out of work
repeat  process across row
when  the last pair of needles on the left is pushed back into work, knit one row
COL knit 10 rows, bring the third pair of needles into work, knit one rowPush the first pair of needles out to work, knit 5 rows, continue with reverse shaping.
If the pattern is to end on the right (or left), knit 6 rows on the last 4 stitches and stop, otherwise when the opposite side position is reached, knit 10 more rows before reversing and continuing in the pattern.
Tracking rows worked: 7 ladders are created in each space, 12 on each end. Depending on yarn and stitch size watch to see that even tension is maintained particularly on the first 2 stitches worked on each side.
The swatch is shown before and after some light pressing, the arrow marks some looser stitches on the side edge.

Latch tool cast on from left to right, chaining 4  in no needle, future ladder spaces
COR with the first 2 needles in work, knit 2 rows
COR bring the first needle on left into work, knit 1 row to the left on three stitches
COL bring the first needle of the previous pair on the right out to hold, knit one row to the right on two stitches
COR bring the closest needle on the left into work, knit 1 row on three stitches
COL bring the second needle of the previous pair on the right out to hold, knit one row on two stitches
repeat working on 3, then 2 stitch sequences until there are only 2 needles left in work, end COL
COL knit two rows, begin  reverse shaping by putting one needle into work on the right, knit one row on three needles
COR bring the first stitch on the far left out to work, knit one row on 2 needles
continue reverse shaping, ending with 2 needles in work on the far right
COR knit two rows on 2 stitches, repeat and continue the process until 2 stitches are left in work on the left, and reverse again
end fabric with 2 rows knit on last 2 stitches in work
latch tool bind off with chaining X 4 in ladder spaces
keep an eye on sequences, the floats are created in series of three, with experience knitting similar patterns, errors become easy to spot during is knitting Shell shapes: #4 and # 20 directions are given in the 2017 blog post Some of the trims in this pub may be far more easily and quickly executed using tuck stitches.

My first non repetitive DBJ explorations on 930

WORK IN PROGRESS

I created large-scale nonrepetitive image garments very early in my knitting career using Cochenille Bitknitter and Commodore computers linked to a Passap E6000. Over time my focus changed considerably, with any production knitting moving onto accessories as I began to make items for sale in galleries and in shows, most often single bed on a Brother 910. If knitting is a primary source of income, one needs to consider production time management, material costs, and what the local market will bear in terms of pricing.
A post, written in 2018, began to explore two-color-dbj-non-repetitive-images-electronic-kms/. At that time I did not have a machine model capable of using img2track.
An orphaned 930 entered my life, and with rare exceptions, over the past few years, my blog sample swatches have been knit using img2track, which I have found easy, reliable, with any programming errors due to the operator issues including learning the differences from 910 programming and remembering to actually use them.
No matter how long any of us have been knitting, there can be many aaargh moments both in everyday knitting and when exploring new techniques.
I have a supply of lovely 2/48 cash-wool in royal blue, black, and grey. Three strands worked predictably on my punchcard machine in a series of my spiky scarves, shown in progress on the machine. Nearly all my previous dbj pieces have been knit on a Passap E6000. The 930 experience for such repeats is new to me. With some help from Tanya Cunnigham in reviewing steps required when using img2track, I returned to cellular automata repeat saved years ago.
I encountered problems with the triple strands of blue not feeding evenly, here both colors were picked up by the changer accidentally, I realized the issue, trying to unravel the row of knitting produced this That provided an opportunity to decide I preferred the reverse color placement as well as wanting a thicker ply for the white, resulting in twice the fun with 2 colors, and another scrapped sample Switching the white to a single-ply thicker yarn made its stitch formation far more manageable. The blue however seemed to have a single strand of the three with a propensity for catching on gate pegs. I tried tension adjustments, the usual tips in managing static. At about row 1,000 out of 1288 rows, I realized I had an issue with both yarns being caught on gate pegs. In trying to lift the stitches off, the yarn broke but gave with no immediate visible clues, the dropped stitches and a lovely hole, as a result, appeared when knitting had progressed far enough below the current knit rows. On the left, the work is shown still on the machine, while on the right, it is off the machine, and in the process of a patch job with a temporary accessory and stitch holder in place. I was able to achieve a reasonable repair on the knit side, but the birdseye pattern on the reverse is a bit scrambled. For folks that are not familiar with electronics and are curious, the 930 has the smallest memory of the later Brother electronic models. My pattern repeat is 74 stitches wide by 644 rows in height. The user manual explains: the KH-930 takes just a few seconds to load the track because the memory holds only 2 KB of data (about 13000 stitches). Later models have a much larger memory (32 KB). The KH-940 and KH-950i require 42 seconds to load a track. The KH-965i and KH-970 load only the requested pattern, so the loading time depends on the size of the pattern. img2track indicates progress as the data is sent to the KM. When the pattern has finished loading, the KM should beep, and show the green READY light and a 1 in the display (for row 1). The program automatically chooses Selector 2 for a single image and centers it. You may change this by using the normal pattern selecting process on the knitting machine, choose Selector 1 for all-over patterning, or use Selector 2 and choose a different location on the needle bed to center the pattern. If your pattern was divided into more than one track, you will have to load successive tracks when completing the previous track, specific instructions are given for programming subsequent tracks. My pattern was broken down into 4 tracks.
The cable used for downloads to the machine is used externally, no alterations to the machine’s hardware are required as when using Ayab on the 910. The pattern is stored in the machine, so the computer needs to be awake only during downloads, not constantly as in programs that use knit-from-screen.
Each track for 2 color DBJ using the KRC built-in separation is entered in numerical order as a new pattern with first-row preselection from the left to the right and first row knit from right to left toward the color changer. If the repeat is not planned for the number of needles in use, any position or change to all-over design needs to be re-entered, and the KRC button must also be set again.
Cam button settings are set according to the chosen dbj variations for either or both beds. End needle selection is usually canceled. In some patterns using it can create an interesting beaded edge on either side, which is worth testing on small samples to determine one’s preference.
I like to plan my pieces beginning with the dark color, plan my repeats with the deliberate placement of both colors, and any scaling in the pattern BMP prior to download, using Gimp. I also prefer to have color 1 as the dark, color 2 as the light. The default in the Japanese DBJ separation uses the light color, white squares, as color 1. Out of habit I color reverse my images so my first preselected row from right to left can just knit my black squares rather than the white, and I can continue my motifs as I intended while having machine prompts for each color also match.
Pausing knitting is easy as long as the needle selection is not disturbed. Ending with COR avoids any confusion about which color should be used next. Starting outside the set mark, turn the machine back on, and simply continue in pattern with appropriate color changes.
Tanya Cunningham manages and moderates the membership, settings, and posts for the Img2track – For Machine Knitters group on Facebook.
These were her tips and reminders to me for handling pauses in knitting immediately after the following track in the sequence is first downloaded: let’s say that either some needles got pushed in or repositioned, or for whatever reason, you don’t have certainty that the last row of needle selection is reliable, and you want to “re-select” the last row before you knit it, the last track you knitted should still be in the memory, even though you’ve completed that part of the pattern.
1. Push all needles back to Pos B.
2. remove the yarn from the feeder, disconnect the K carriage from the R carriage.
3. Turn Change/Selector knob from KCII to N (NOTE, this will cause your PART buttons to de-select)
4. press BOTH PART buttons.
5. Move K carriage to right. No needles will knit, since all are in POS B, and both PART buttons are depressed, AND no needles will select, since you’ve moved the change/selector knob to N, and the memo will not record any advancement of row. (However, if you’re using your mechanical row counter, it WILL record a row, and one on the way back so plan to either disable the ribber arm or plan to turn the counter back 2 rows)
6. Now you will have to re-select the last row of needles for the track you’ve most recently knitted. First, verify that KRC is activated. Now, you will have to push the up/down arrow buttons to select the very last row of the pattern which will be an even number, and color 1. Depending on whether the carriage was moved in such a way as to activate the sensor enough to cause the memo to advance, you may be able to simply use the row that’s showing, but even beginning the movement of the carriage may advance it. To be sure, what I do is to advance (in this case to Row 1 Color 1), and then back up one row, using the arrow buttons.
7. Move your Change/Selector knob to KCII, be sure to move outside the turn mark. Verify KRC; memo says last row, color 1; both PART buttons in. Now, move your carriage right-to-left, to select the last row of the previous track.
8. Load color 1 in the carriage, load next track into the machine, KRC selected.
9. Now, as you knit to the right, you will be knitting the last row of the previous track, and selecting needles for the first row of the next track. Carry on.

In terms of generating cellular automata math-based patterns, the Wolfram website is a great place to explore repeats. A player, temporarily unavailable to Mac users is presently available, allows for the download of interactive demos in .cdf format. In terms of knitting any of the repeats, the most suitable appear to be ones that are generated in black and white to start with. Not all are, and at times changing the mode to bitmapped in programs such as Gimp can produce a glitched effect. Though the latter may be interesting and desirable to some, I prefer clean lines and diagonals along with identifiable shifts in the scale of any triangular components.

I am often amazed at the speed with which time passes, previous related posts: 2015/12/09/cellular-automata-charts-for-knitting-etc/
Previously knit repeats 2017/09/11/my-new-knitting-projects/

Weaving drafts may also serve as inspiration for knitting repeats. Posts with related content: 2015/11/28/weaving-drafts-as-inspiration-for-other-textile-techniques/, and 2018/07/02/numbers-to-gimp-to-create-images-for-electronic-download/. These images are extracted from a draft for an advancing twill. One may explore segment placement and color reversals easily using programs such as Gimp. There is also potential for exchanging colors to get a sense of how the pattern might appear in different colorways My planned test repeat is 76 stitches wide by 556 rows high.

Tuck trims 4 and other edgings

WORK IN PROGRESS

In the FB machine knitting groups questions about tuck-lace trims have once again surfaced with regards to their design and use as edge finishes or decorative details. Some automated potential details have been covered in previous posts
“Crochet” meets machine knitting techniques: tuck lace trims (and fabrics 1)
Tuck lace trims (and fabrics 2)
Ribber trims 3: one trim, four variations
Ribber trims 2
Ribber trims/edgings 1
The trims, however, may easily be created on any machine using hand needle selection and holding techniques. Over the years a number of names have been assigned to such trims, from idiot’s delight to shell, cockle shell, double shell, and scallop shell.
Trims are generally knit vertically, are often quite “lacey”, applied upon completion, generally with their knit side out. Some people think of them as mock crochet. They can go from tiny to heavier double-edge versions.
Generally, they benefit from being knit slowly with some weight to help hold the stitches in place and have the groups of tuck loops knit off properly. Start with a few rows of waste yarn and ravel cord to anchor to hold the weight, follow with a permanent cast on-on needles represented by grey squares in each group. Knit 2 rows on all needles and begin in the pattern. The method for creating tucked loops manually is to bring needles out to hold after setting the knit carriage accordingly. Until those same needles are pushed back into work loops will build on their shanks and will be knit off when the involved needles are pushed back into work. The limit with automated patterning for tuck in 4.5 mm machines, unless very thin yarn is used, is often 4 rows. There is greater tolerance in tucks created by hand techniques, but as with any fabric, it is best to test on swatches prior to committing to significant lengths of fabric.
When knitting trims and ruffles, end with several rows of waste yarn in a contrasting color, allowing for unraveling and binding off after application if the trim is too long, or for unraveling to a knit row and knitting more if the initial length is too short. Seam-as-you-knit might not be the best method to use if the intent is to retain the shell-shaped forms trim sides.
It is possible to visualize repeats both singly and in groups using tools from simple graph paper to spreadsheets. Japanese machines may not tolerate more than 4 rows of held or tucked loops unless the yarn is on the thin side, machines like Passap or Superba have a far greater tolerance.
Pivoting around a center stitch and adding width in vertical trims makes them foldable around a finished edge. When using electronic machines the garment’s finished edge may be picked up and the repeat for some of the trims can be programmed on the width of the piece for a predetermined height and bound off. If one is using a punchcard with single repeat vertical patterning or for more than one vertical trim with blank spaces in between them, the card would not be suitable for a finish on a horizontal knit edge.

To knit: bring needles in positions represented by yellow squares out to hold,  push back to knit by the number of rows indicated in the chart.
A good source for pattern ideas can be found in punchcard volumes in the sections marked for thread lace. To add to the mix, once the repeat is worked out, transferring needles intended to be left out of work on the main bed may be transferred to the ribber when knitting trims as well.
Segments marked with green cells may be grouped in a variety of ways to create repeats in different widths, asymmetrical ones are also a possible consideration
Two repeats on a single cardThe process for knitting a sample as a hand technique: Cast on the 7 stitches marked in work, bring needles2, 6, and 10 to holding position set the knit carriage to hold
knit 4 or chosen number of rows
push needles back into work position and knit one or chosen number of rows
return needles 2, 6, and 10 to hold
repeat the process for the desired length
bind off or remove onto waste yarn
An electronic or punchcard repeat for 4 tuck row: I like to start my repeats with an all knit row when possible. The design may be knit as a single motif, and though it is symmetrical whether the machine model used flips the image horizontally or not can have an effect on whether the uneven number of needles will be to the left or to the right of 0. If there is any question a few air knit rows will clarify pattern needle placement.
The automated repeat: The samples below were knit using a 2/8 wool, at T4, are shown folded along their center on the right of the photos, with the open edge on the left as they came off the machine. The usual single bed tension for this yarn might be 7 or 8, depending on stitch type. The greater the number of knit stitches on either bed, the closer the tension will have to be adjusted to that used in stocking stitch for the same yarn. Wool also has memory, will want to roll to knit side at the top and bottom, to the purl side along vertical edges, steps often need to be taken to reduce the rolls. Using this repeat as a stand-alone, the roll is severe, with the cast-off edge picked up, continue from there, a rolled edge with no stitching required is formed, no further finishing required, is shown after light steaming Even if a repeat for automating the trim or edging is designed and may have been used before, it is best to test the repeat as a hand technique in any new or untested yarn first to see how many loops can build up before the stitches on each side may not knit, or the loops themselves might not knit off properly as a group on the next all knit row. Five rows were the limit for this yarn A bound off edge was picked up, purl side facing, a side edge could be as well. Test to see which side facing may suit your piece best. Ten plain knit rows were followed by holding for 5 rows on every sixth needle, followed by a central single all knit row, 5 more rows held on the same needles locations, ending with 9 rows knit on all needles, and the trim was bound off. It may be folded to the purl or the knit side before being stitched into place and is likely to require some blocking. A variety of edgings may be produced by simply hooking up ladder floats created by leaving needles out of work after X number of rows. In this instance chain cast on over 11 needles, dropping the center 5 chains and taking the corresponding needles out of work.
Knit 12 rows.
Pick up six floats and the chain from the start of the piece, bring them to the front of the knit, and place them on the needle marked with red cells at the right.
Knit 6 rows, pick up 6 floats again, place them on needle marked with red cells to the left,
repeat This variation uses the thicker blue yarn, knit at tension 4; 12 rows are knit before hooking up the lower groups of six ladders, which makes the floats easier to pick up or count using a single eye tool. Repeating selection on the same side allows the trim to be easily bent around corners  Trims using holding alone border on the possibility of automation using slip stitch programming. A simple one to start: cast on 7 stitches, with the center needle out of work. Knit a few rows, set knit carriage to hold.
COR: push needles at left out to hold position
knit 8 or chosen even number of  rows on needles 5, 6, and 7 on the right
COR: push needles 1, 2, and 3 on left to D position, knit 3 or a preferred odd number of rows, ending with the carriage on the left
COL: reverse the holding sequence  The single out-of-work needle produces a ladder that nearly disappears after the trim relaxes, any our of work needle arrangement may be tried between the two groups of 3 needles in work.
Adding holding: cast on needle arrangement shown. The 3 stitches will roll to the purl side creating an edge that looks very similar on both sides of the trim. knit 3 or more rows, end COL
bring the 3 needles on the right out to hold, knit a row
COR wrap the inside needle of the 3 in holding, knit back to left 5 times
COR knit 5 rows (or DIY odd number), ending on the opposite side
COL reverse shaping

Interlock explorations 2; adding needles out of work

Most variations using tuck settings will loosen the fabric structure, slip stitches will narrow it. The behavior is consistent in working on both single and double beds. Color changes may be added.
There are only very short descriptions and schematics for the more complex tuck interlocks online, making attempting them a puzzle, where efforts at piecing it may not necessarily lead to correct answers, but still produce interesting knits. The ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies that draft international standards for subjects including knitting. My charts for the tuck interlocks were personal interpretations based on a few of their illustrations, among which is this for cross tuck 1, which appears to be the most straightforward, with every needle knitting on one bed, while the other works the basic 2X2 stitch alternating repeat on either one of the 2 beds translated for knitting, patterning may be used on either bed, with the opposite bed set to knit every stitch. If patterning is on the ribber, have the first and last needles in work on the main bed. The top bed is set to tuck in both directions, the fabric is shown lightly stretched and could conceivably be used to create a ruffled edge when followed by narrower stitch types ie. every needle rib or Milano variants Changing settings: with the knit carriage set to slip in one direction, knit in the other, the ribber knitting every row
Needles may be taken out of work to create pleats in every needle ribs, alternating their placement between the 2 beds. Knit stitches stabilize tuck ones. Here every other needle is taken out of work on only one bed. The tuck loops are more visible in any open spaces between the vertical rows of ribbed stitches. The ribber will knit every row on the same needles aligning directly above each other, thus ruling out full pitch.
The needles are set up so that the first and last are in use on the ribber, ensuring that a knit stitch will be on the side of any tuck stitch selected on the top bed, on the top bed the every other needle tuck selection reverses as the direction of the knit carriage does, needles brought forward knit, the ones skipped hold tuck loops in their needle hooks,  the resulting fabric Other explorations with needle out of work:
Milano waffle: single color, 4 passes with every needle knitting, 4 passes tubular, more passes of each may be added to distribute color changes. The number of needles in work on the main bed remains fixed. Choosing spacing between needles in work on the main bed A working repeat with 4 circular rows, 6 full rows knit  My first swatch in the technique was in response to a Ravelry member share describing the stitch pattern used in a finished garment  The main bed is programmed, set to slip both ways after the first preselection row. After 2 rows knit on both beds, the ribber is then switched to slip in one direction, knit in the other in response to needle selection on the top bed. Main bed needles out ribber slips, main bed needles in B, ribber knits. After 4 circular passes, the ribber is again set to knit for 2 rows. The appearance during knit rows followed by float formation when only the top bed knits The resulting grid may be used as a guide for hand techniques off the machine in isolated areas or all over Repeating the experiment with  2 stitches on each edge, this time disengaging the ribber and knitting 2 rows only on the top bed only rather than knitting circular rows and changing ribber settings. The floats are brought closer together, the fabric is far quicker to knit. Needle arrangements may be varied to accommodate thicker yarns, or alter the texture by varying both the number of knit rows and circular ones  Windowpane bourrelet: beds are supposedly at full pitch, I had better success at half-pitch. The same bed is used for single bed rows as for basic bourrelet, a color change to try: every 6 rows Because the top bed needles are in pairs, the EON selection remains evident, each of the first 2 passes completes one row of knitting.
When only the top bed knits, floats are formed between the needles in work Knitting went more smoothly when 3 needles on the top bed were used on each end The ribber carriage was disengaged to allow the pattern to knit only on the top bed. When there are needles out of work, floats will be created between the needles in work. The length of the swatch was determined when I noticed the yarn was not properly placed in the feeder, and I had already begun to drop stitches on the left side. It is one of the things to watch for, and which may merit a small preventive hack to keep the yarn from accidentally slipping out of its proper place. Half Milano with tucked long stitch: the main bed needles will tuck one row, then slip one row. The ribber needles will first knit a row, then slip a row while the second bed knits both rows. Then the ribber needles knit one row then slip a row while the second bed knits two rows. I have had no success with trying to execute my interpretation of the directions without getting floats on the top bed, and the photo in Machine Knitter’s Guide to Creating Fabrics is not clear enough to distinguish if there indeed are floats on the surface of the fabric. The experimental repeat Having the ribber knit every row produces many more rows on the purl side than on the knit, so the vertical all knit columns do ripple a bit. In this stitch version, with pattern knitting beginning from the left, the main bed is set to alternately tuck and slip using the half-pitch setting row one preselected for knitting the first row has been knit, the second knit row preselected the second row knit, no preselection for tuck or slip the tuck row is formed with the knit pass to the right, no preselection the row of stitches is skipped on the way to the left, preselecting for the next first knit row, tuck loops visible on top of the hooks of the selected needles the process is repeated. The resulting fabric:  Tucked pique: knit the same as for pique, but with cams set for tuck on the top bed, set beds at half-pitch.In DIY the potential for exploration is endless. As always, if needles are out of work on the main bed, end needle selection is canceled. Here slip setting in both directions is used, along with needles out of work on both beds, the 1X1 needle repeat is programmed. Set up is with ribber needles in work between needles preselected for knit stitches on the top bed. Beginning patterning on the left after the initial preselection from the right, the ribber setting:
the result has floats on the purl side, a slightly pleated look on the knit side. Playing with color and texture: use 2 or 3, change colors every 2 rows, every 4, or at the end of each full pattern repeat.
Change one or both cams from slip to tuck.
Try adding racking when using tucking on the main bed
Vary working needle arrangements with interlock settings.

The ISO illustrations gave clues as to whether the same number of needles are at work in any pass on each bed. The intent with the second pass in each pair of passes is to create a slipped,  tucked, or knit stitch in between the alternate needles on the opposite bed.
Cross miss interlock: in this instance, tuck loops alone with no in-between knit stitches are created on the top bed, in the same spots where stitches were slipped on the previous pass. Starting side does not matter, but being consistent makes experimentation easier to understand and follow. The lili buttons, set to slip in both directions remain unchanged on the ribber carriage throughout. The knit carriage is set to slip in both directions as well as to hold. My swatch began with a knit stitch selection on the top bed, marked with a red line the length of the repeat below, and needles were arranged accordingly. The tuck loops are created using a hand technique and holding combined with patterning
This shows the elongated stitches between ones that will be knit on the next pass. On rows 3 and 6 of the pattern, there will be no needle pre-selection, but the elongated slipped stitches will still be identifiable. After both no preselection row bring alternate needles out to hold using any EON needle tool. In my case, COL, I began with needle 1 on the left on row 3, alternating beginning with needle 2 on the left on row 6. The number of rows in between hand techs is an odd one, so sides for the hand tech will alter as well. This shows the tuck loops formed EON as the carriages travel to the right.
Prior to resuming pattern knitting, needles with loops on them need to be returned to the B position, maintaining the EON needle preselection for the next pass
Repeat the process when design row 6 is reached, beginning with needle 2 on the left. The texture appears on the purl side of the piece, shown on the left
This repeat uses 6 passes as well. The tuck loops on the top bed occur above slipped stitches in the previous pass, which may be replicated, but the real problem is that every third row on the ribber is also having to tuck on specific needles with no knit stitches between them. The tuck loops happen directly above knit stitches formed in the previous row if the tucking lever is changed manually from R to P on those rows. That is a lot to juggle, a noHere the eon tuck would fall on slipped stitches in the previous pass, so that is doable. It is possible to fool the lili selection into believing there are extra needles in work on each side of the ribber, which can “make” the first stitch on either side knit rather than slip or tuck. The method is used in creating a striper backing in Brother DBJ  and would require fiddling with needles on the ribber in an irregular selection repeat as well as the hand technique on the top bed. Another definite noThis pattern repeat is a short one, the changes are more regular on the ribber. The hand tech tuck stitches could be formed for 2 rows with all stitches getting worked back to B position in between those preselected for the next pattern row. The lili buttons need to get fooled after alternating pairs of rows, the start of several nos for me.

Intarsia without an intarsia carriage on Brother machines

I recently have been browsing through some of my machine manuals and found these references on methods for executing simple intarsia patterns, the type I usually associate with holding hand techniques. The knit carriage is used, the yarn is placed on the floor in front of the machine rather than fed through the yarn mast. I have not tried either method, am sharing the information for anyone who has not come across the information and may want to give the techniques a try.

This is from a Japanese language manual for the 891(1987-89) punchcard machine, appears to introduce the idea of replacing the use of the knit carriage and plaiting feeder with one specifically designed for intarsia
